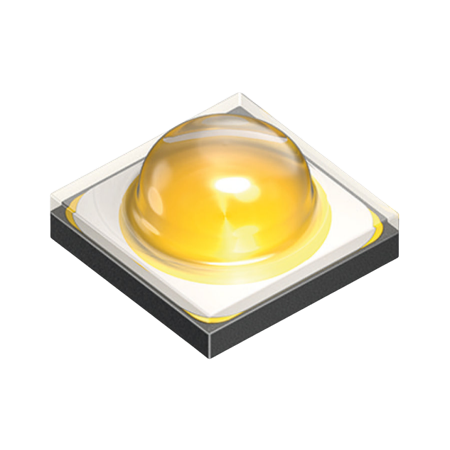

ams OSRAM OSLON® Square Q65111A8019 – 3030 2W for outdoor lighting
Higher performance. Lower thermal resistance. Extended range of driving conditions. This is the second generation OSLON Square.
Part no.: Q65111A8019
Key features
- Package: SMT ceramic package with silicone lens
- Typ. Radiation: 120° (Lambertian emitter)
- Corrosion Robustness Class: 3B
- Color temperature: 2700K - 4000K
- CRI: 95 (min.), 97 (typ.)
- Lumen maintenance: Test results according to IESNA LM-80 available
- ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
- Luminous Flux: typ. 192 lm @ 3000 K, 85 °C
- Luminous efficacy: typ. 98 lm/W @ 3000 K, 85 °C
Applications
- UV-C Treatment
- Sensing
- Horticulture Treatment
