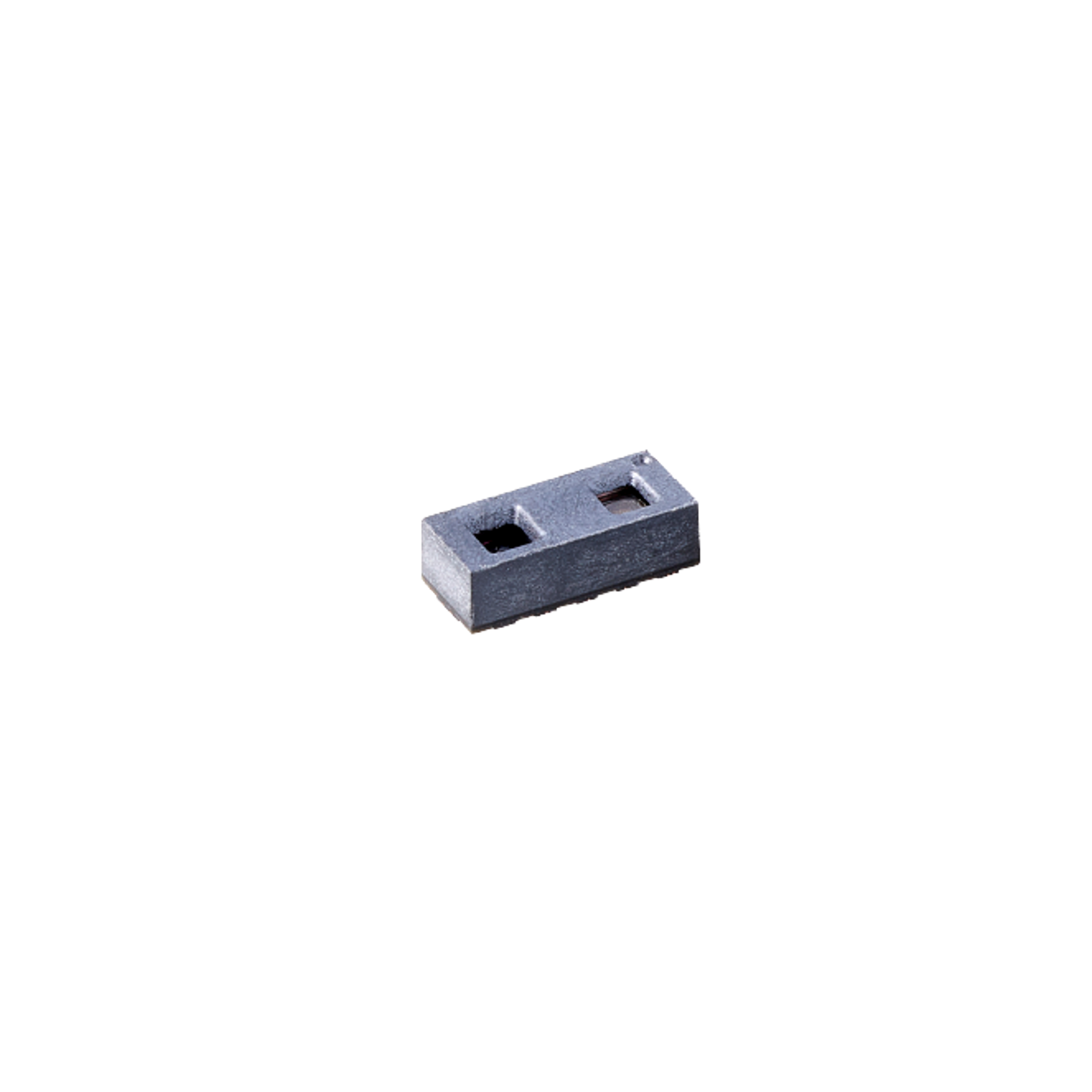

ams TMF8821 TOF Sensor
The TMF8820/21/28 is a dToF (direct time of flight) wide field of view optical distance sensor module achieving up to 5000 mm target detection distance and has up to 3×3, 4×4, 3×6 or 8×8 zones.
Part no.: TMF8821
Key features
- Direct ToF technology with high sensitivity SPAD detection
- 4x4 configurable multi-zone configuration with multi-object detection
- Adjustable field of view (up to 63° diagonal)
- Fast Time-to-Digital Converter (TDC) architecture
- Sub-nanosecond light pulse
- On-chip histogram processing
- 940nm VCSEL Class 1 Eye Safety
- High performance on-chip sunlight rejection filter and algorithm
- Small modular OLGA 2.0mm x 4.6mm x 1.4mm package
Applications
- UV-C Treatment
- Sensing
- Horticulture Treatment
